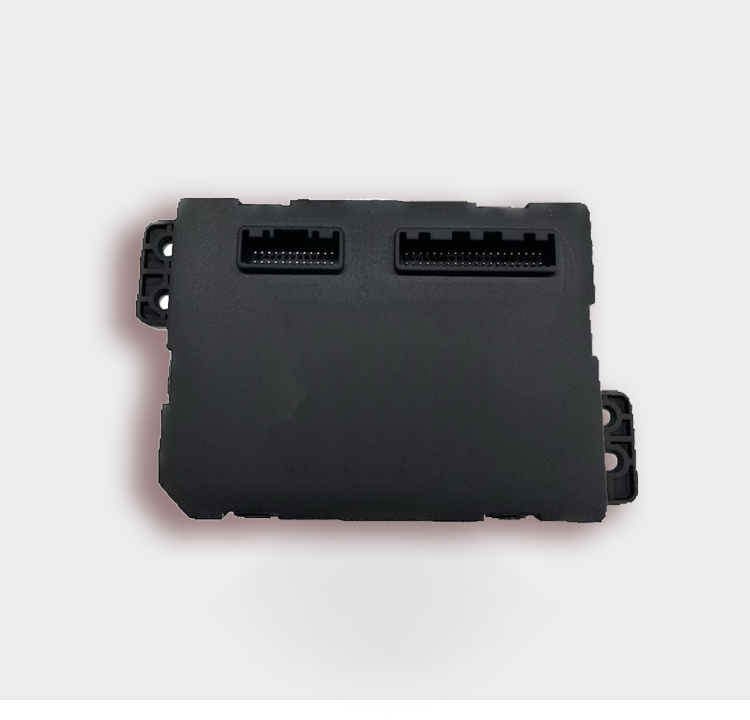

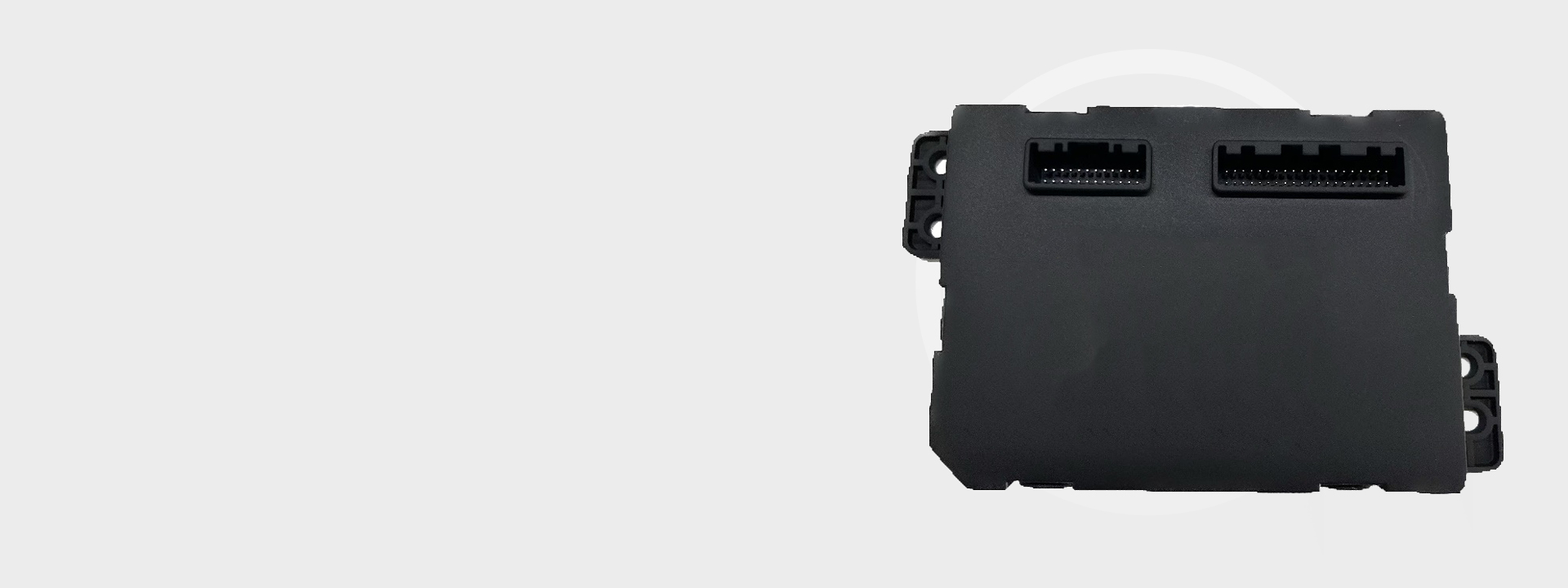

KESENS Provide the development of the entire thermal management system of new energy and traditional fuel vehicles, and provide thermal management controllers, sensors and actuator system solutions.KESENS integrated thermal management controllers. Support thermal management functions such as cab temperature control, three-electric thermal management control, seat temperature control, etc., to meet the requirements of vehicle thermal management control.
-
64 pin connector, left cavity 24Pin, right cavity 40Pin design
-
2-channel pump drive
-
14-channel temperature analog signal input,8-channel pressure analog signal input
-
2-channel CAN, 1 -channel Lin
-
3-channel damper motor
-
1-channel Electronic Fan
-
3-channel multi-way valve
-
2-channel Blower
-
9-channel Relays
-
2-channel SOV valve
-
Protection grade: IP52
-
Length X width X height：169 X 95 X 29 mm
-
Operating voltage：9~16V
-
Operating temperature：-40℃~85℃
-
Dark Current ：≤500µA
-
Understand people better and reduce the number of operations
-
Better comfort
-
The most cost-effective control decision
-
The switching process is smooth
-
Avoid thermal runaway and be safe
-
The temperature can be adjusted in all scenarios
Product Features
-
Passenger transient and steady-state comfort control
-
Mandatory/automatic defogging
-
Air purification system
-
Cabin intelligent scenarios and function upgrades
-
Single-occupant cabin refrigeration
-
Hybrid refrigeration of the passenger cabin and battery
-
Passenger cabin heating and dehumidification
-
Forced cooling of the power battery
-
Battery-electric drive for low-temperature heat dissipation
-
Battery heating
-
Battery module temperature balance
-
