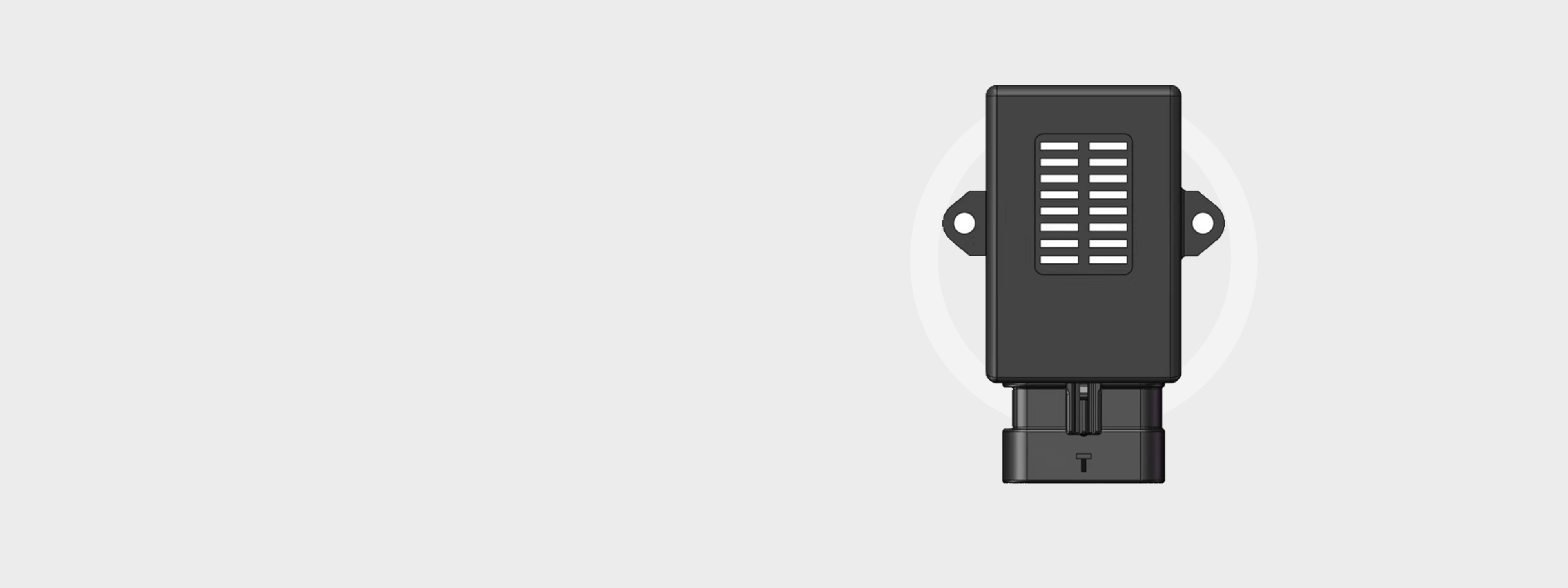

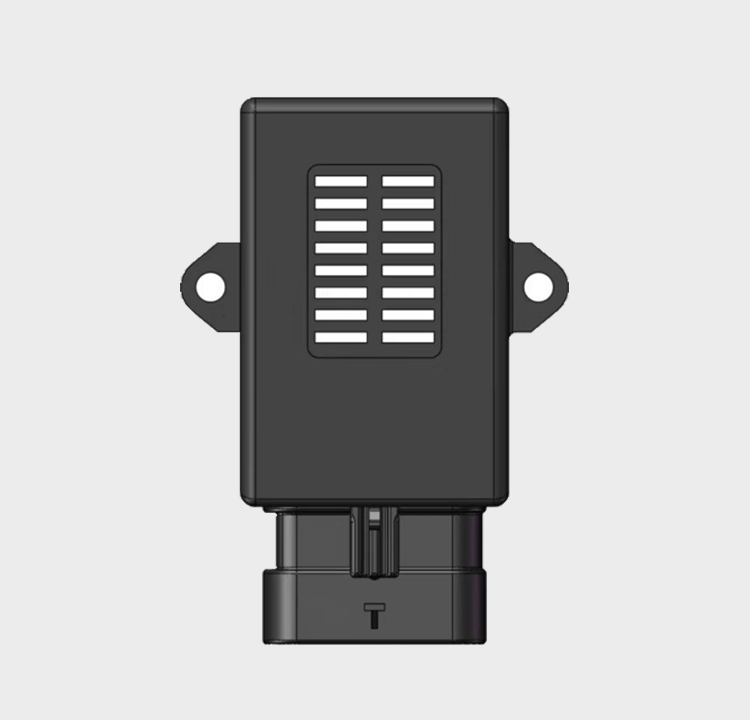

The R290 concentration sensor is an automotive sensor based on Non-Dispersive Infrared (NDIR) gas detection technology, designed to detect the concentration of R290 refrigerant in vehicles.
Based on Non-Dispersive Infrared (NDIR) Gas Detection Technology
Based on Cold Light Source and Photoelectric Detection Technology
0~100% LFL Measurement Range
High Detection Accuracy
High Sensitivity
Long Lifespan
Support Automatic Calibration Algorithm
Support Fault Self-Diagnosis Function
Supports LIN Communication (Customizable)
Factory Calibration
The R290 concentration sensor features fast response time, long-term stability, and reliability, making it ideal for automotive applications. By collecting the sensor's output data in real-time, the automotive air conditioning system can achieve effective and safe monitoring of R290 refrigerant leakage.

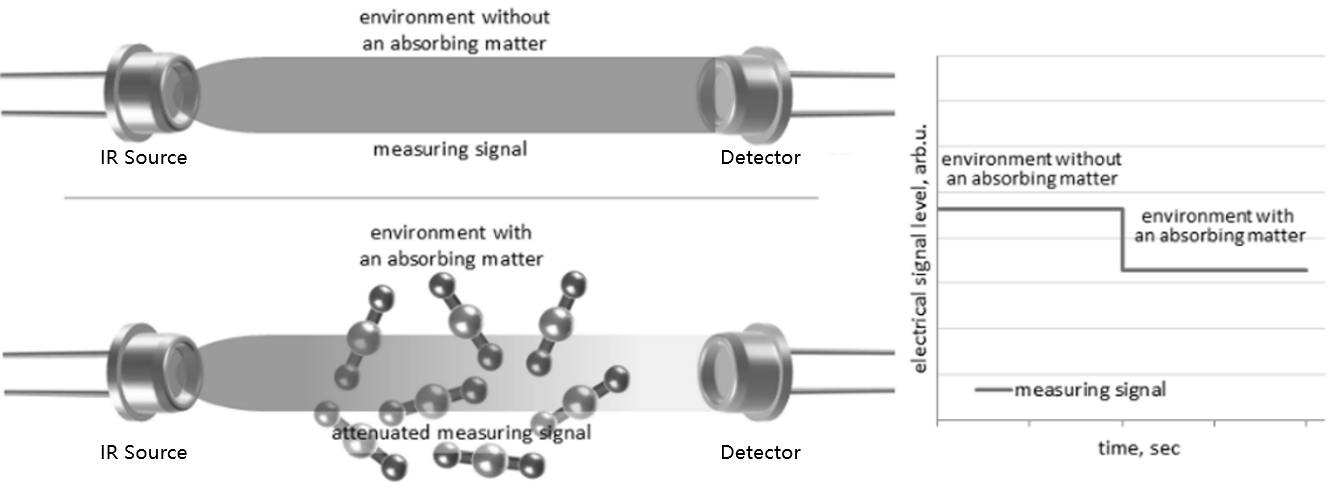

The R290 concentration sensor utilizes Non-Dispersive Infrared (NDIR) gas detection technology, which is based on gas absorption theory. When infrared radiation emitted by the light source passes through the target gas at a specific concentration, the spectral intensity—proportional to the gas concentration—undergoes measurable changes. By quantifying these spectral intensity variations, the concentration of the target gas can be precisely derived.
Customized to customer choice of connection system.
Custom packaging can be provided to meet any need, please contact KESENS Engineering for details.
-
